Tilt-steering wheel and high-back seat

The steering wheel tilts by the easy-step pedal to improve steering comfort and to make your ride comfortable no matter the conditions, the new high-back seat is specifically designed to absorb shock, reducing operator fatigue. For added comfort, armrests are standard equipment.

Expansive operator platform

Thanks to a large, ISO-mounted flat deck, the operator enjoys plenty of legroom and a wider step area for easier mounting and dismounting. Widely spaced fenders also contribute to a comfortable, spacious environment.

Hydraulic independent PTO

The Independent PTO keeps stopping to a minimum. Stay productive by engaging and disengaging PTO, and continue to travel forward and backward with ease.

Specs

Model

Model name

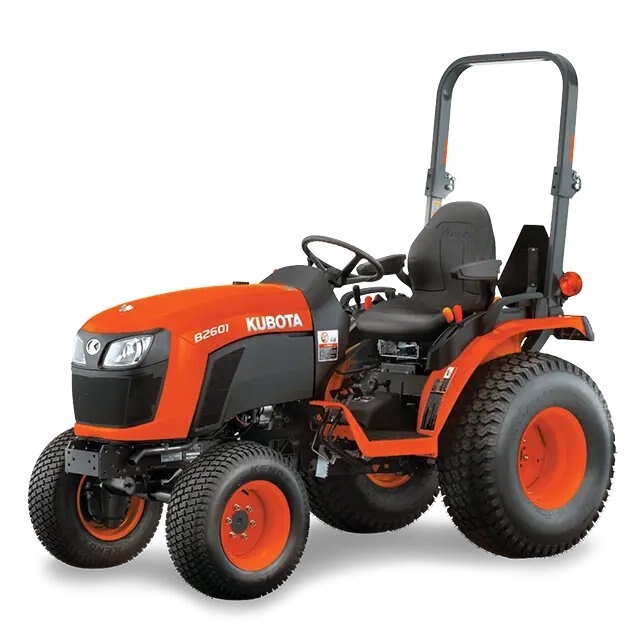

B2601

Engine

Type

E-TVCS, liquid cooled, 3 -cylinder diesel

Air pre-cleaner

Dual paper element

Bore

3.1 in / 78 mm

Stroke

3.1 in / 78.4 mm

Cooling system

Pressurized radiator

Lubrication

Forced lubrication

Make

Kubota D1105

Radiator fan

Radial air flow

Rated engine speed

2800 rpm / 2800 rpm

Engine gross horsepower @ rpm

23.3 HP / 17.37 kW

PTO horsepower

19.4 HP / 14.47 kW

Displacement

68.5 cu. in. / 1123 cc

Fuel tank capacity

6.1 gal / 23 l

Power take off (PTO)

Type

Independent

PTO/engine speed

540 rpm / 540 rpm

Rear

Rated engine speed

2500 rpm / 2500 rpm

Mid

Drive train/transmission

Clutch

N/A

Transmission type

HST (3 ranges)

Differential lock

Standard

Brake type

Multi-plate wet disc

Hydraulic system

Control system

Position control valve

3-Point hitch

Category I

Type

Open center

Total pump output

8.3 gpm / 31.4 l/min

Pump type

Dual pump

Hydraulic outlet

Rear outlet

Steering type

Hydraulic power steering

24" behind lift point

1411 lb / 640 kg

At lift points

1808 lb / 820 kg

Lift capacity

Chassis, axle and brakes

Final drive

Spur gear

Dimensions and weight

Ground clearance

12.8 in / 325 mm

Overall height

85 in / 2160 mm

Wheelbase

61.4 in / 1560 mm

Weight

1632 lb / 740 kg

Without 3 Pt hitch

94.9 in / 2410 mm

Overall length

(min. tread)

49 in / 1245 mm

Overall width

Front (Farm)

44902

Rear (Farm)

11.2-16

Standard tire size

With brake

6.9 ft / 2.1 m

Turning radius

Fluid capacities

Cooling system capacity

4 qt / 3.8 l

Engine lubricant oil capacity

3.3 qt / 3.1 l

Transmission oil capacity

4 gal / 15 l

Fuel system

Fuel type

Diesel

Traveling speeds (With standard tires)

Forward

12.7 mph / 20.4 km/h

Reverse

9.5 mph / 15.3 km/h
