Xplorer
XRT 570 LE

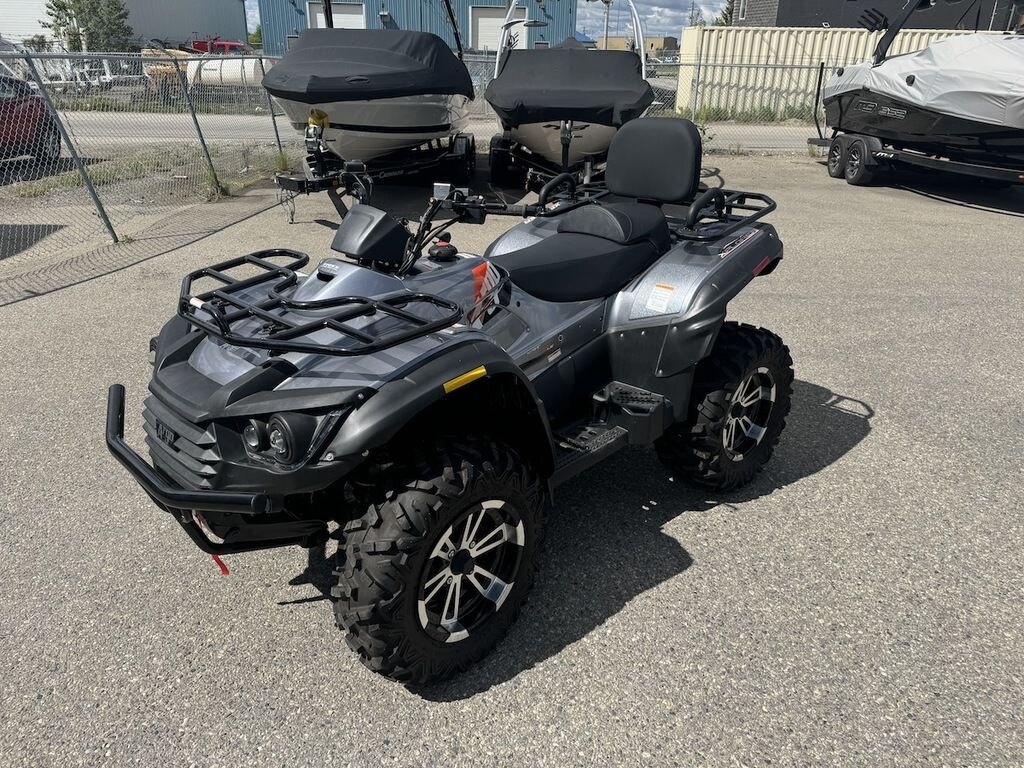

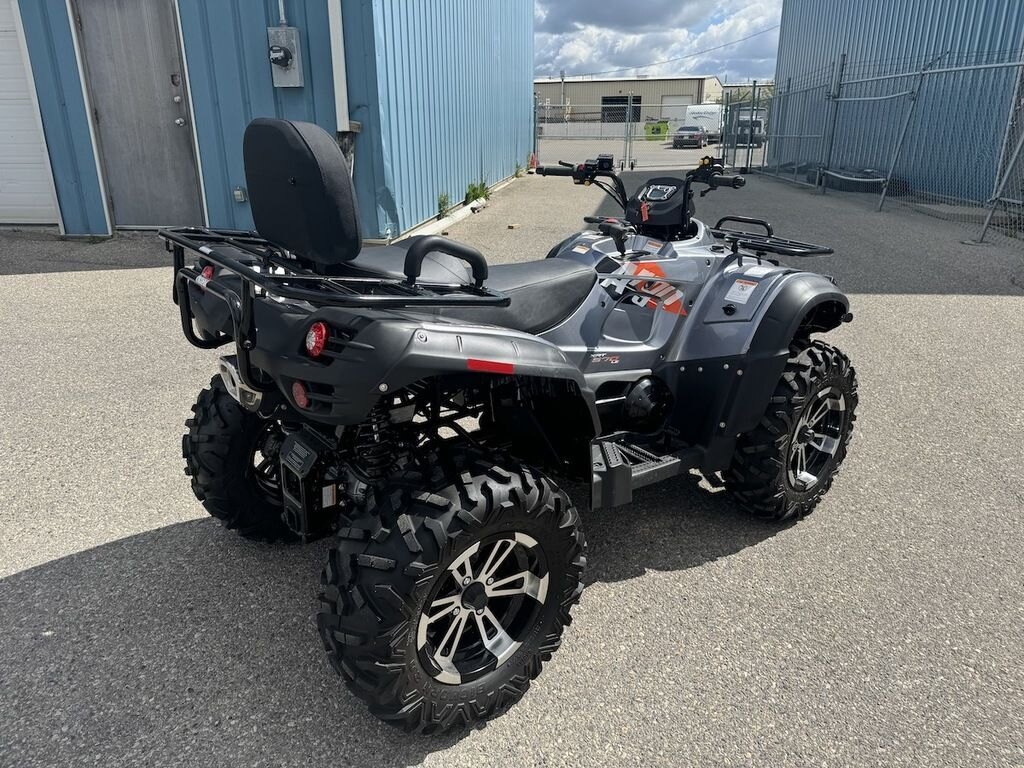

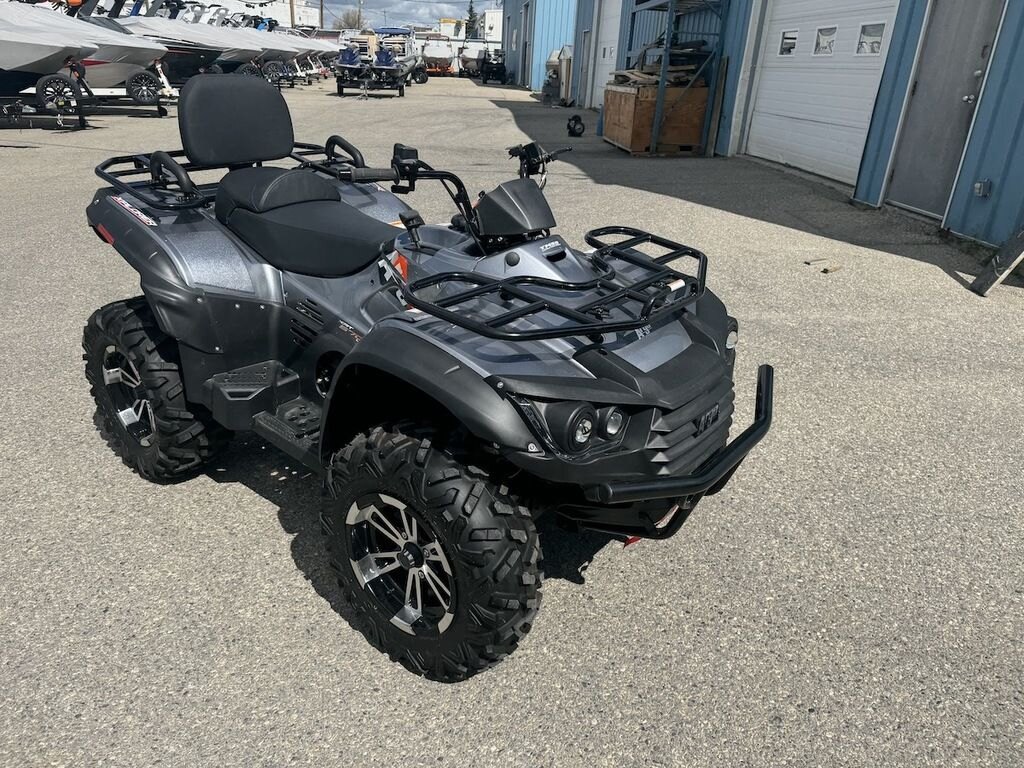

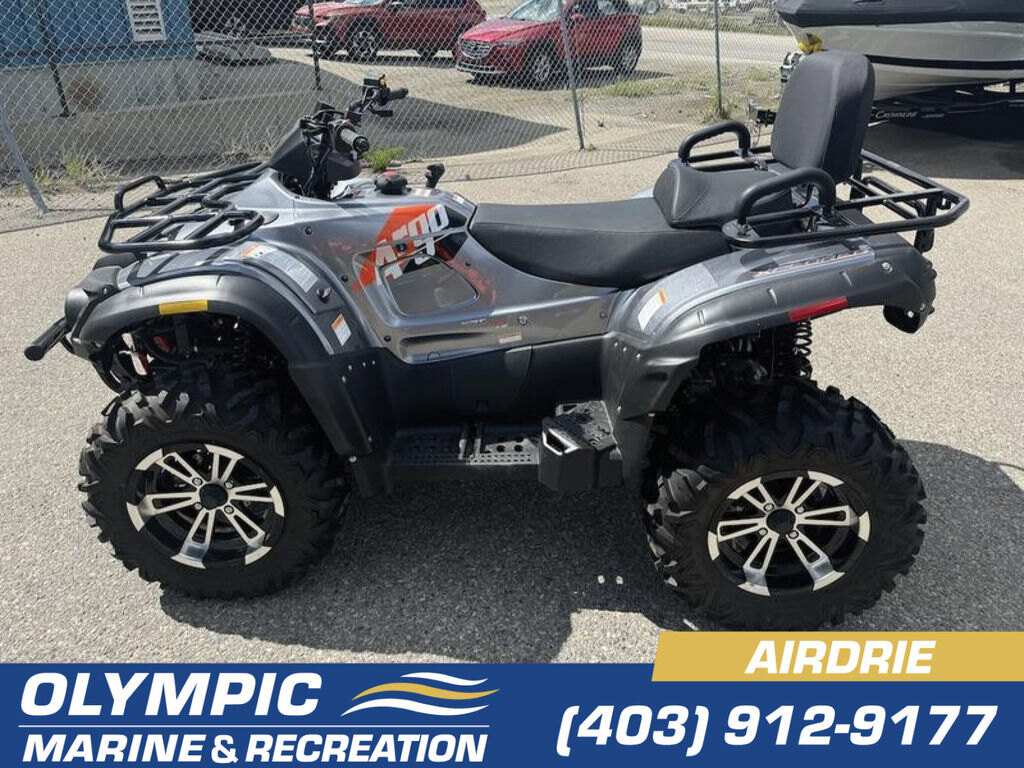

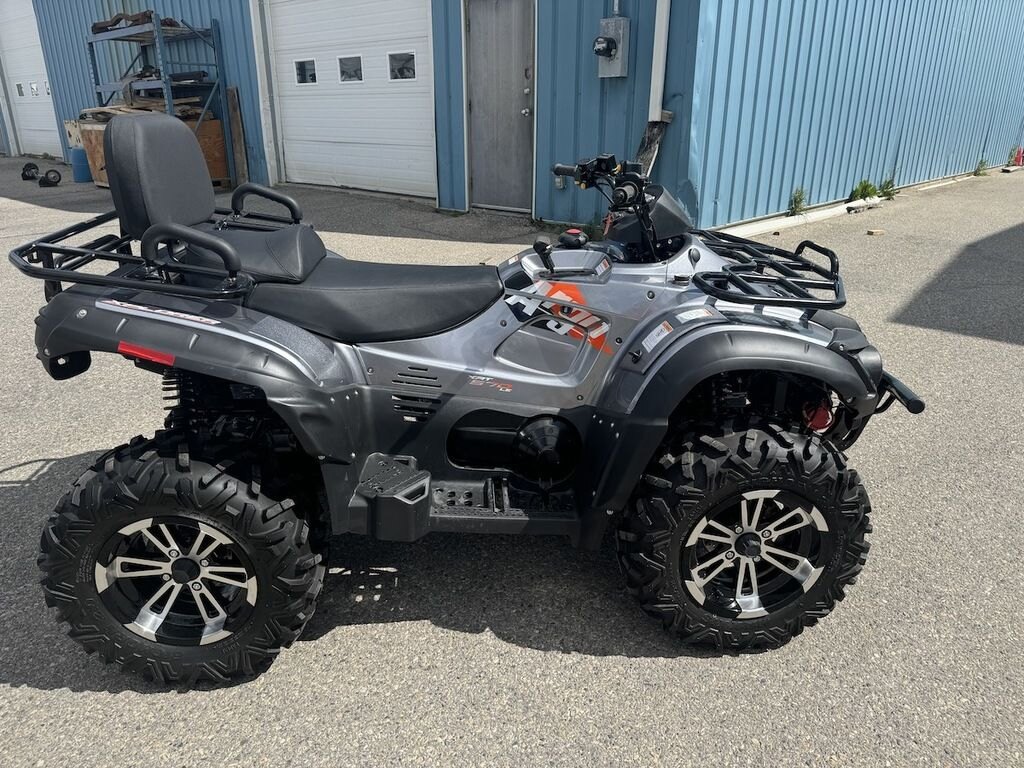

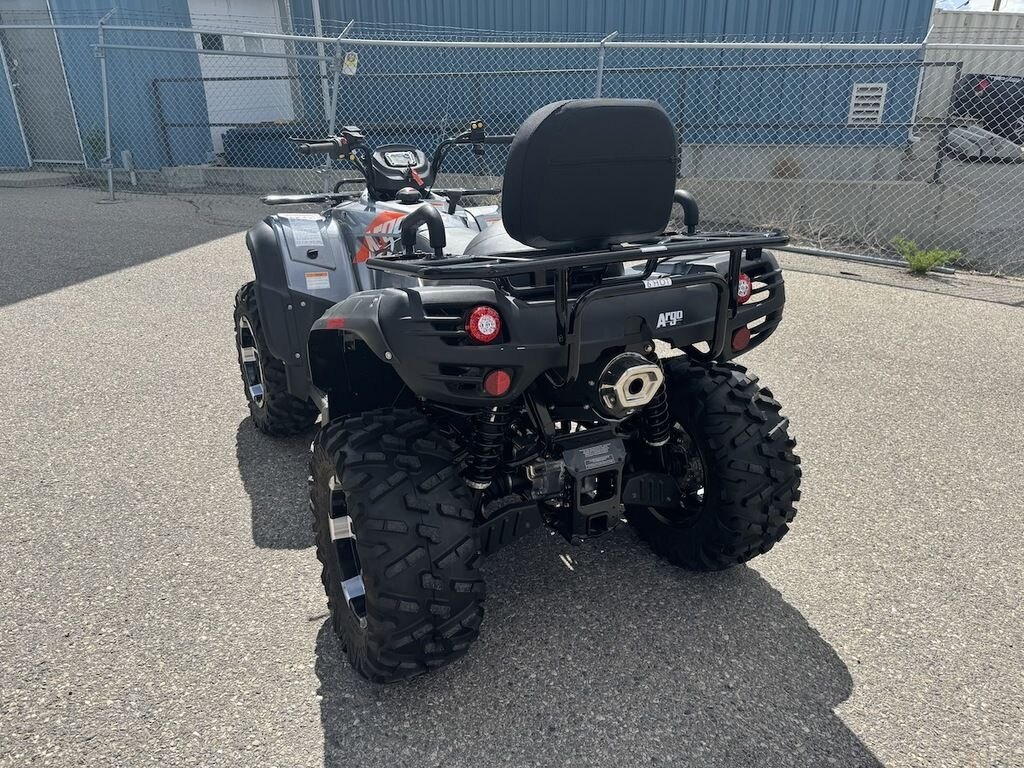

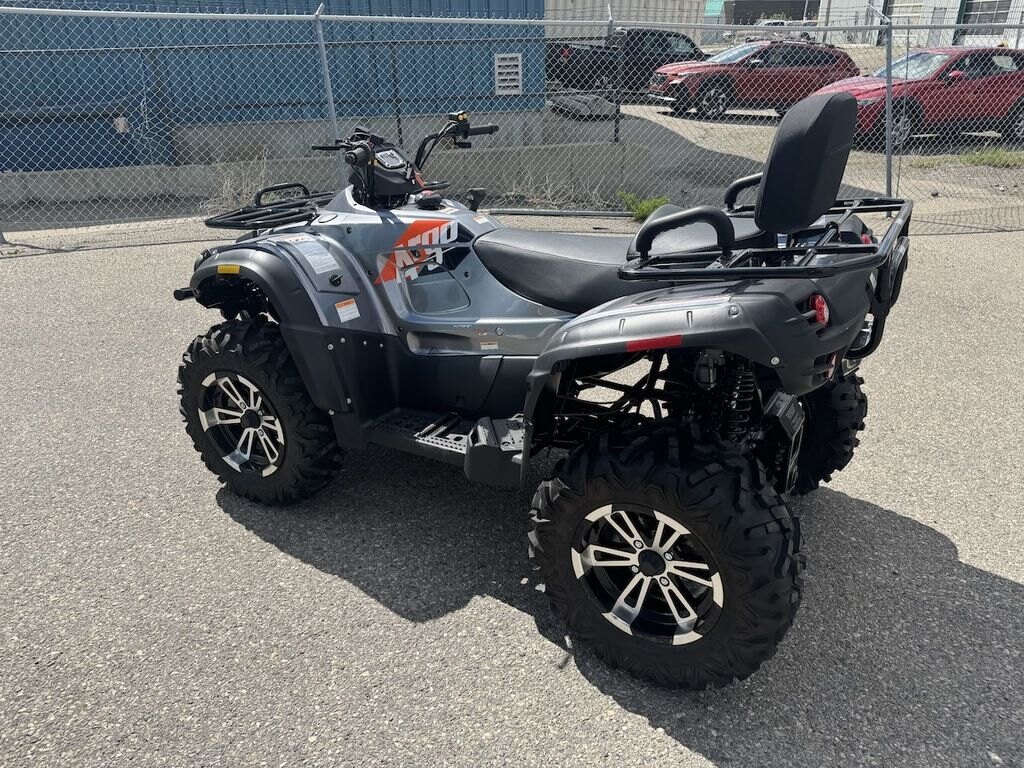

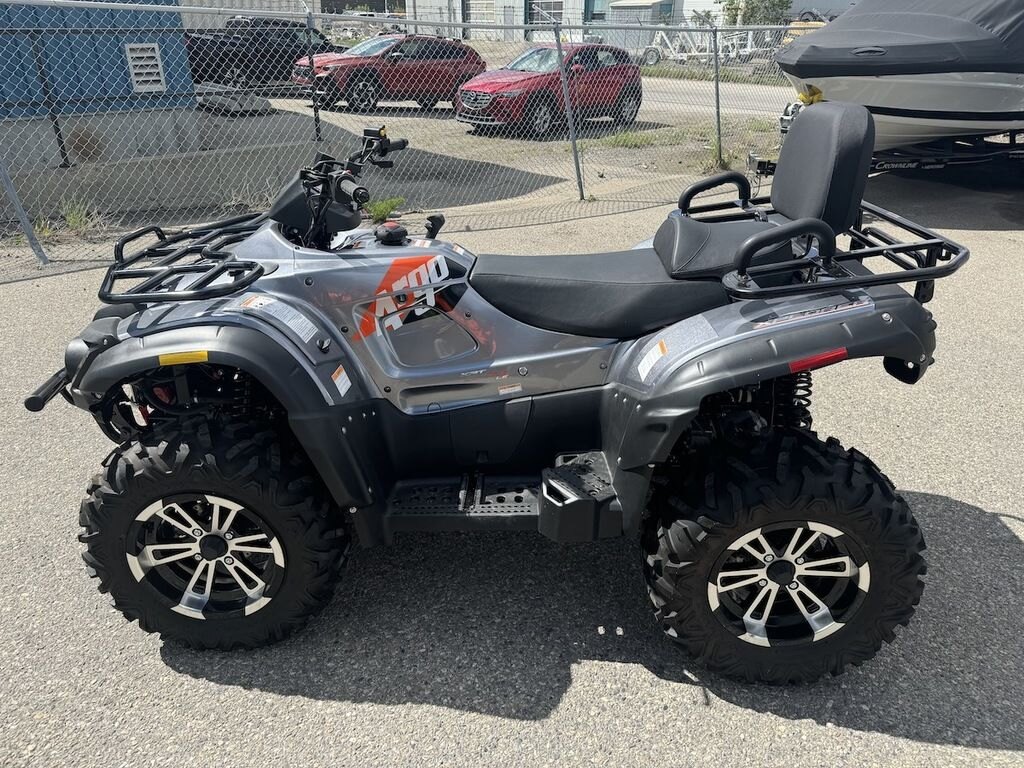

Being behind the handlebars is the thrill we all can’t get enough of on the trail. You’re in control of your picturesque journey turn after turn. There’s nothing quite like it. With the new 2022 Xplorer XRT 570 LE, passengers will now want some time up front. The 561cc liquid-cooled engine is the big reason why the passenger will say, “Pull over, it’s my turn!” The XRT 570 LE is nicely equipped with 26" Maxxis tires with aluminum rims, EPS, 3,000 lb. winch and more. Passengers want to experience premium off-road performance and control for themselves. You can’t blame them.



Specifications:

Displacement: 561.4CC

Engine Stroke: 4 Stroke

Cylinder Arrangement: Sohc Single Cylinder

Valve Configuration: 4 Valve

Fuel System: EFI

Cooling System: Liquid

Bore X Stroke: 95 x 79.2MM

Compression Ratio: 10.2:1

Start Method: Electric Start

Ignition: ECU

Override Button: Yes



Engine:

The 561cc single-cylinder EFI SOHC engine offers power for both work and play, with four-valve technology, dual cooling systems, and EFI for better fuel efficiency, cleaner emissions, and precise throttle response.



Improved Suspension:

Double A-arm front and rear suspensions on all XRT models offer comfort and control, with adjustable coil-over-spring settings for personalized performance and comfort.



Wheels and Tires:

High performance 25” Kenda tires provide superior traction with precision cornering and straight-ahead steering control. The LE models come equipped with 14-inch aluminum wheels with 26” Maxxis tires.



Electric Power Steering:

The Tri-Mode Speed Sensing EPS lets riders adjust steering assist levels (no, minimum, or maximum) via the digital display, based on ATV speed.

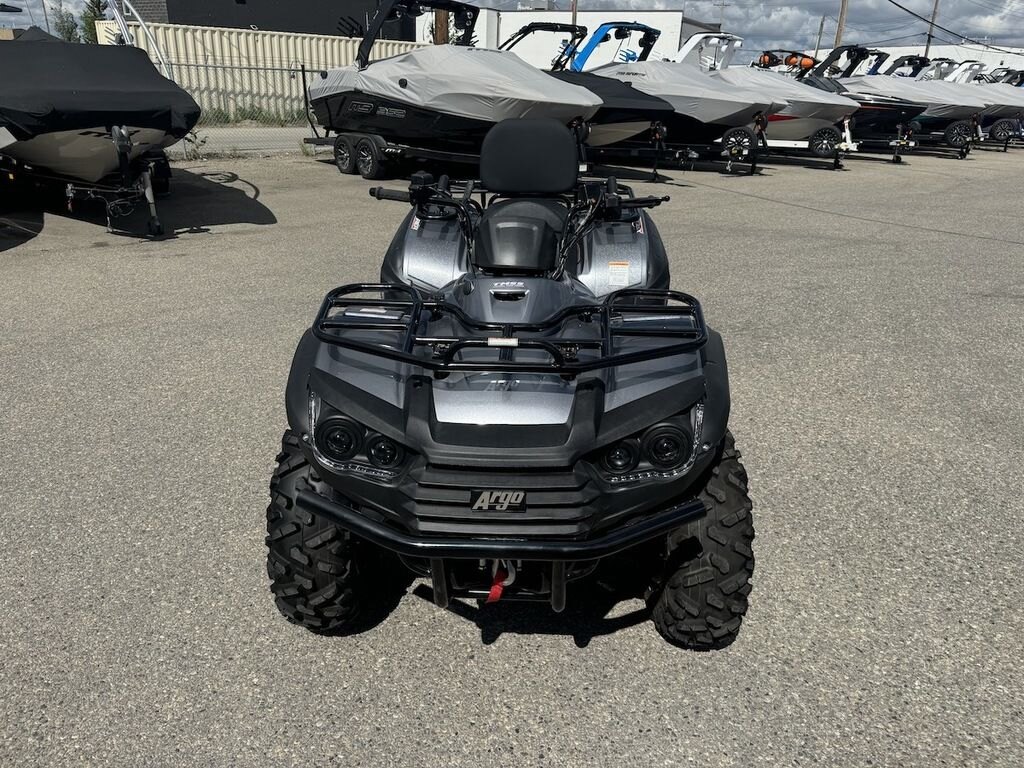

Steel Front and Racks:

The steel front and rear racks offer a 225 lb (102 kg) capacity with multiple tie-down points for versatility. Where are you heading this weekend?

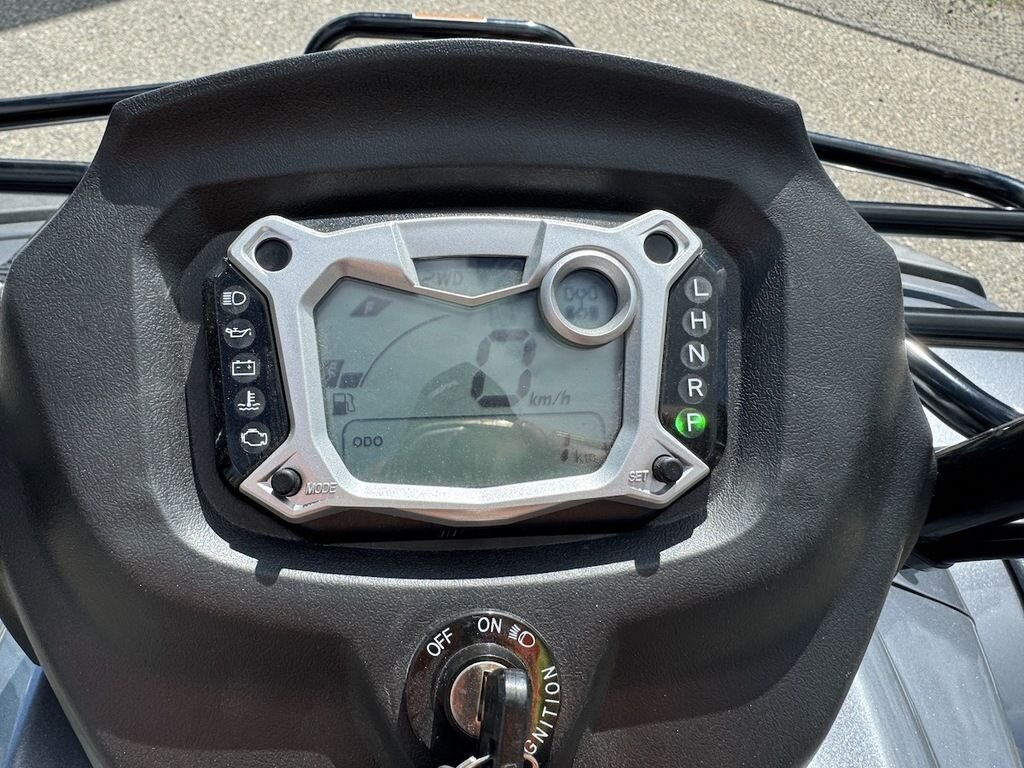

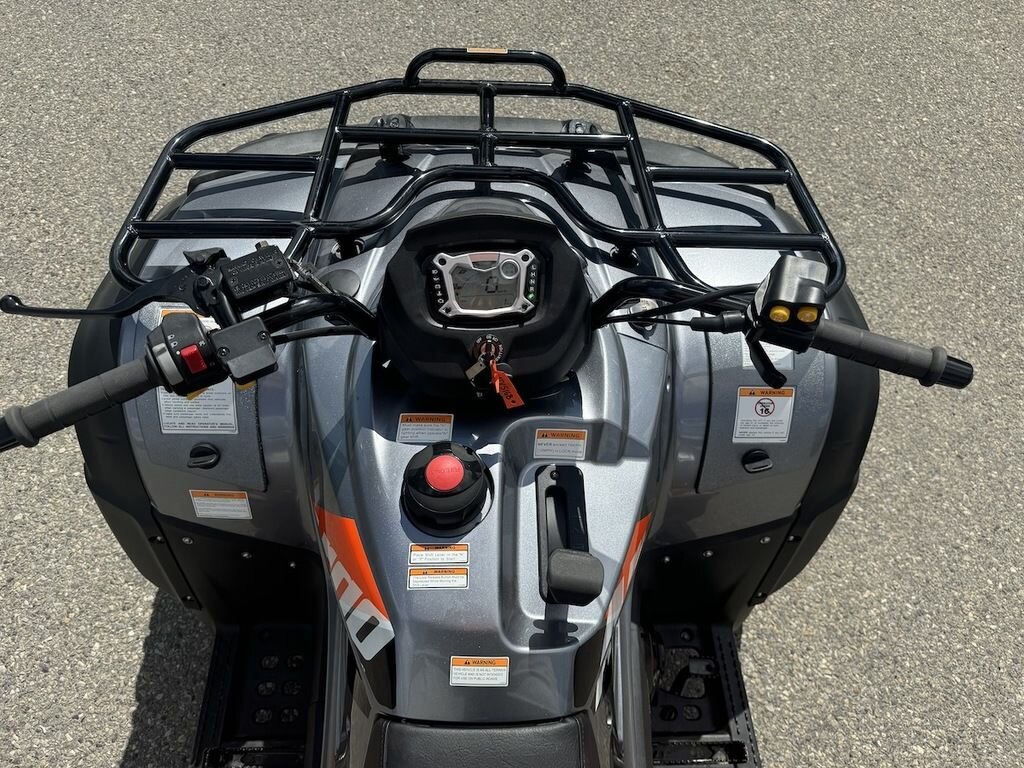

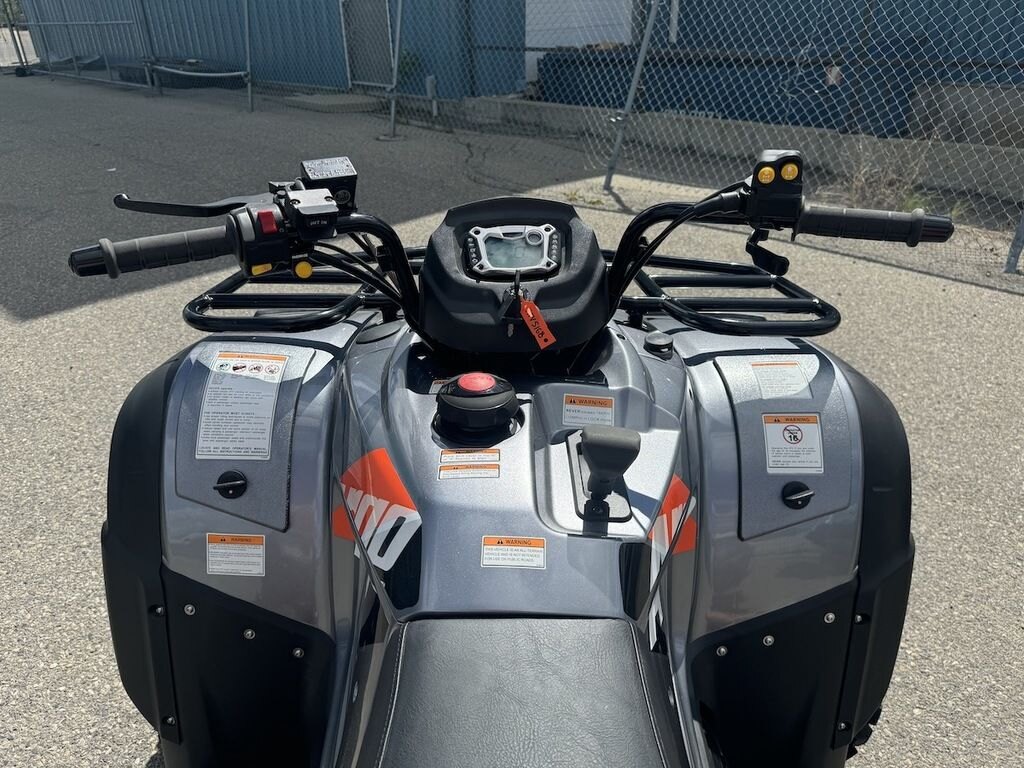

Multifunctional Gauge:

The digital display shows odometer, speedometer, trip odometer, RPM, EPS setting, and fuel level, with indicators for transmission, temperature, battery, high beam, oil pressure, check engine, 2WD/4WD, and differential lock.



Heavy-Duty 3,00Lb Winch:

Be ready for everything and anything. When you need extra muscle, this heavy-duty 3,000 lb winch has been engineered for durability, which maximizes strength and longevity.

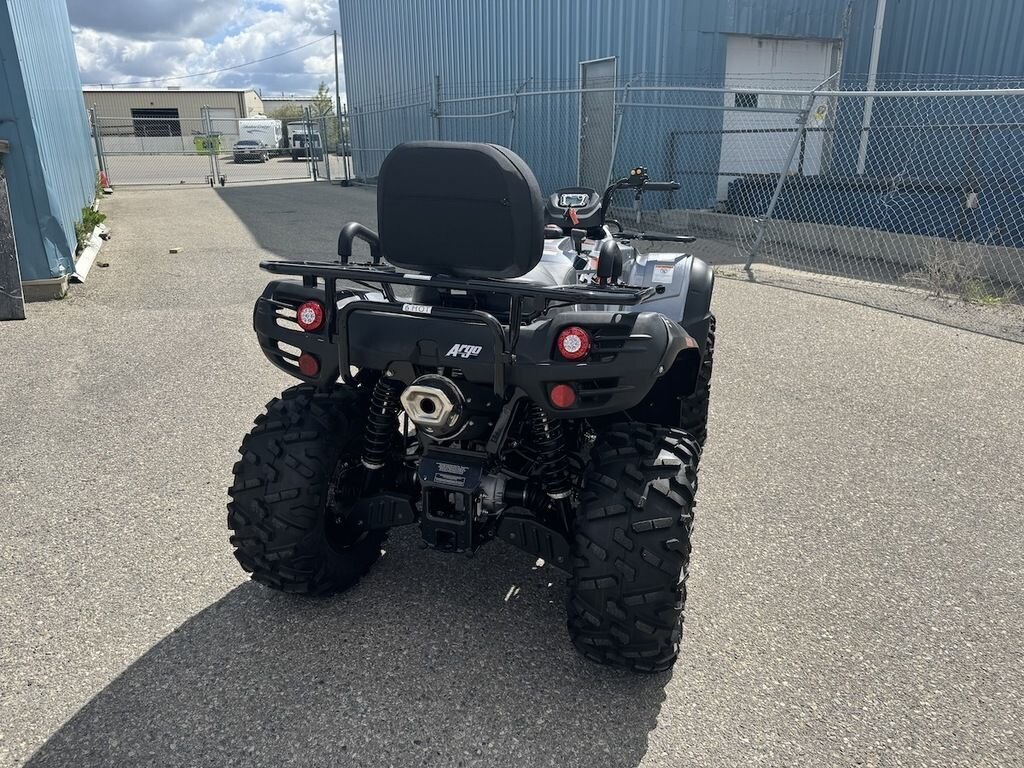

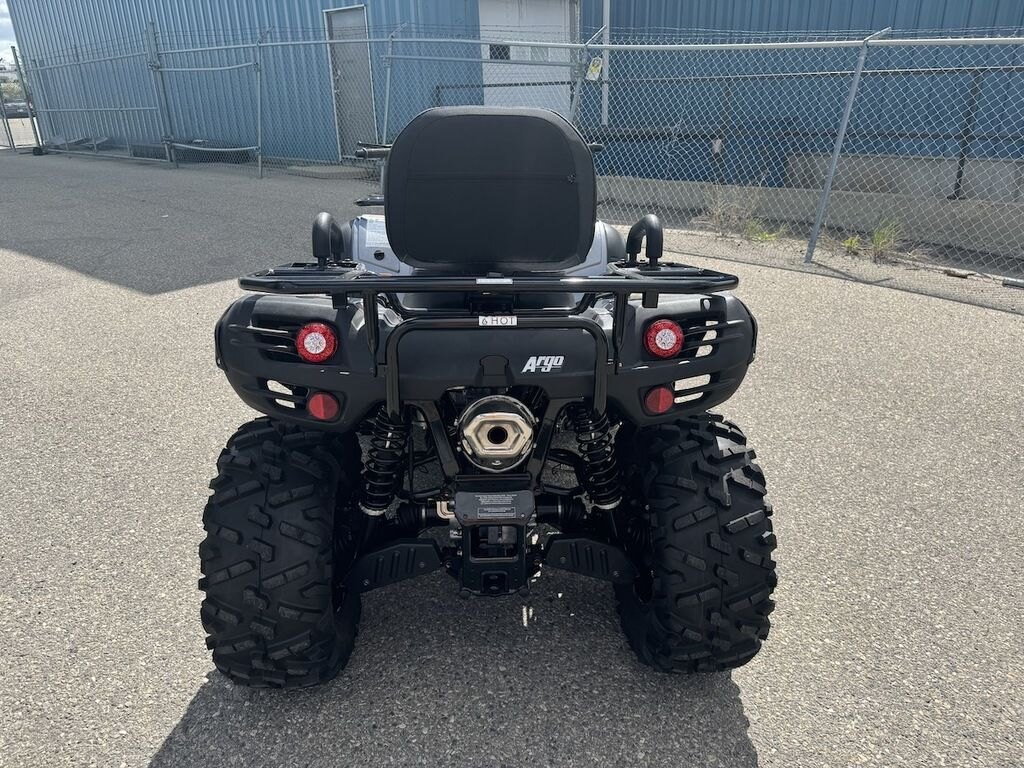

Hitch:

The rugged 2-inch receiver features automotive styling and a maximum towing capacity up to 1,000 LBS. (454 kG).
