INFORMATION DETAILS
ID: 13965764
|
Year: 2018
|
Make: Versatile
|
Model: Combine RT490
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| Engine: | Cummins QSX11.9 |
| Combine Class: | VIII |
| Horsepower: | 490 HP |
SELLER DESCRIPTION

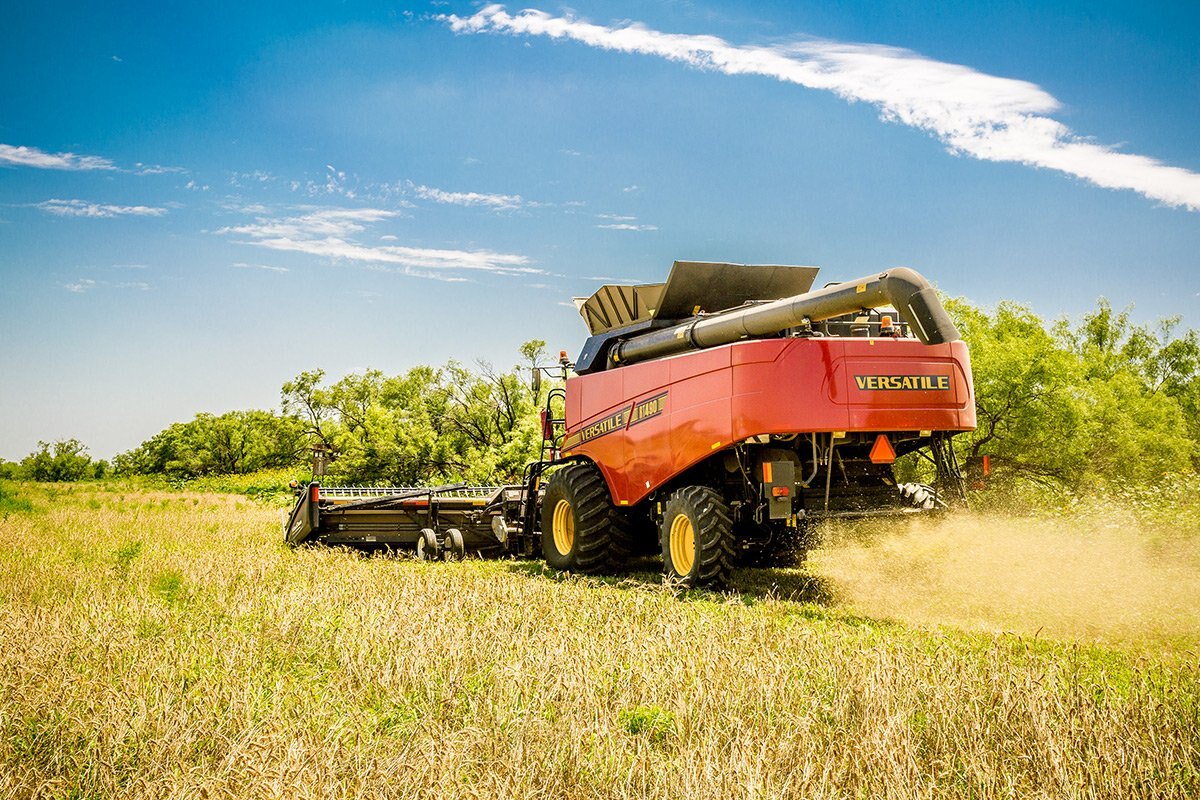

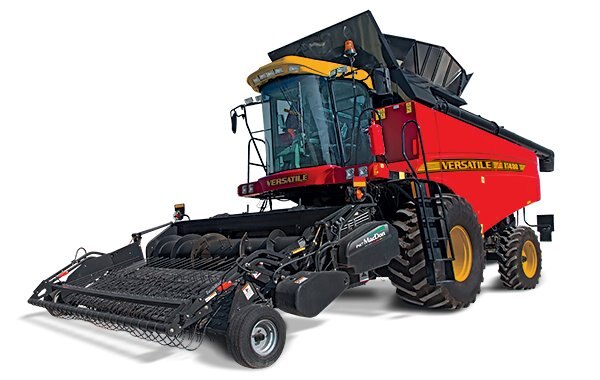

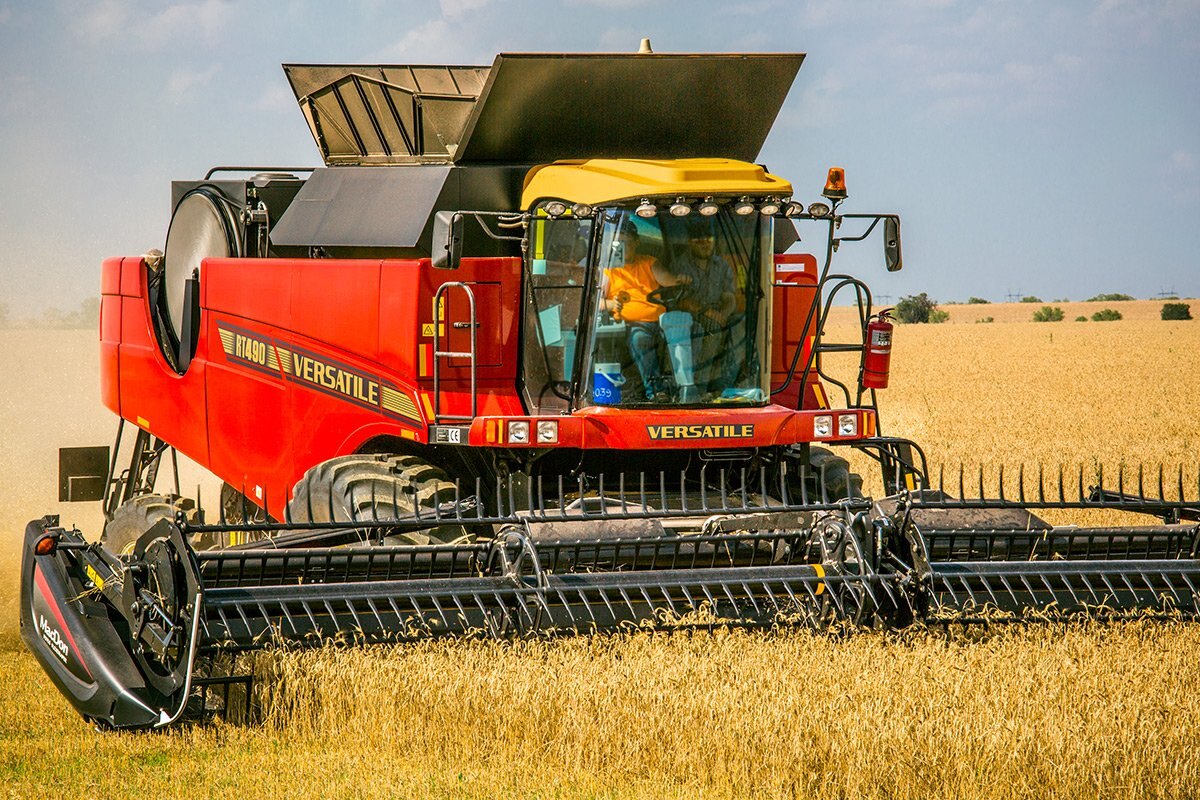

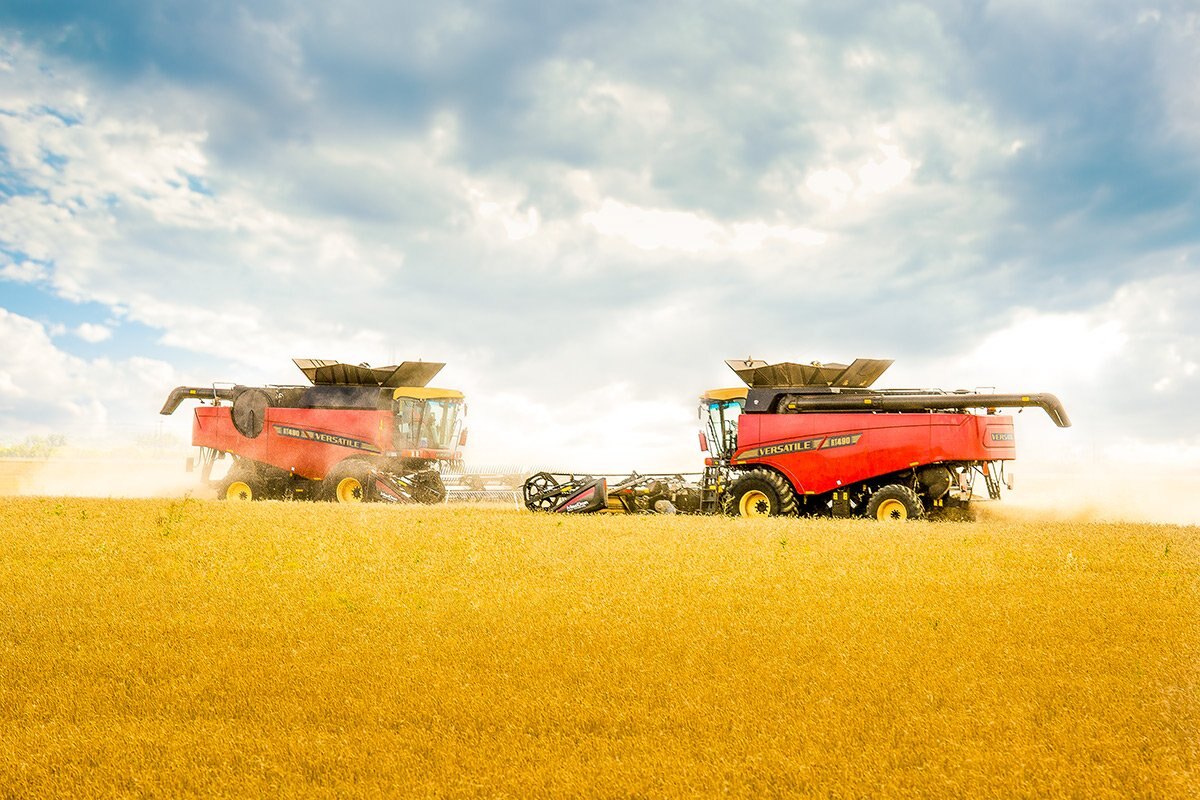

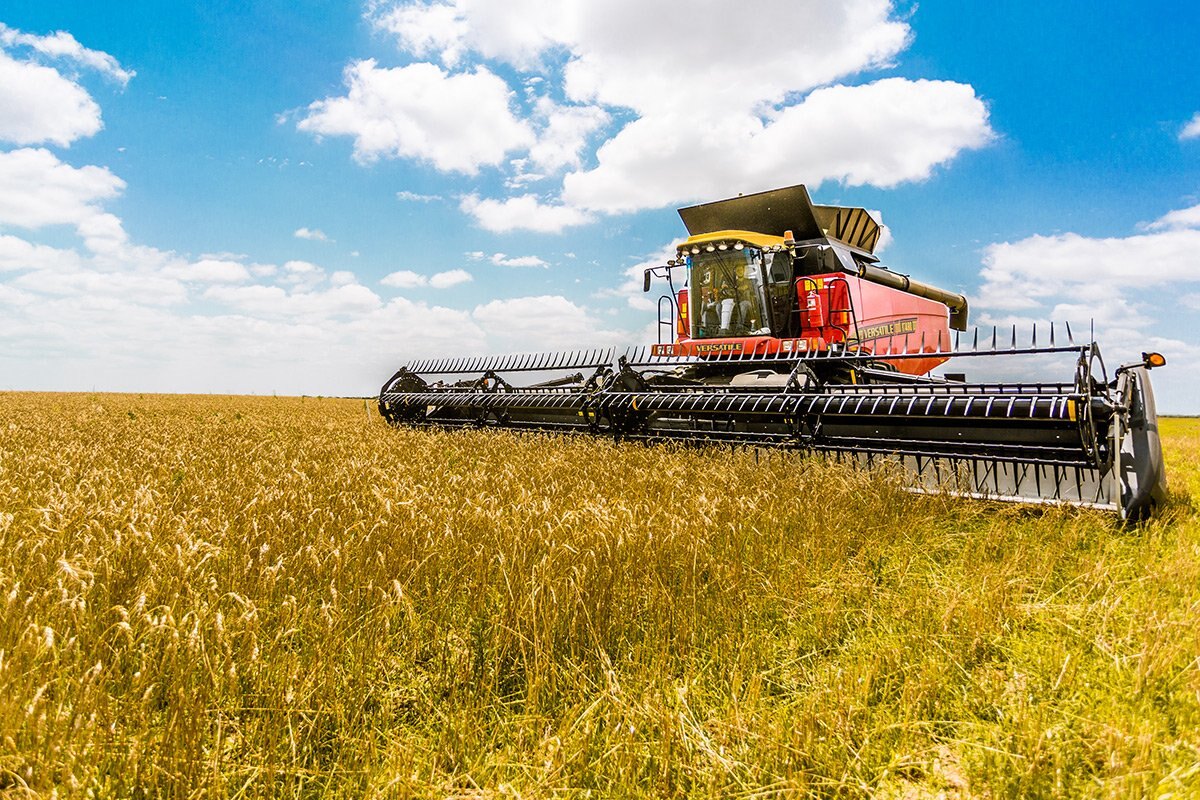

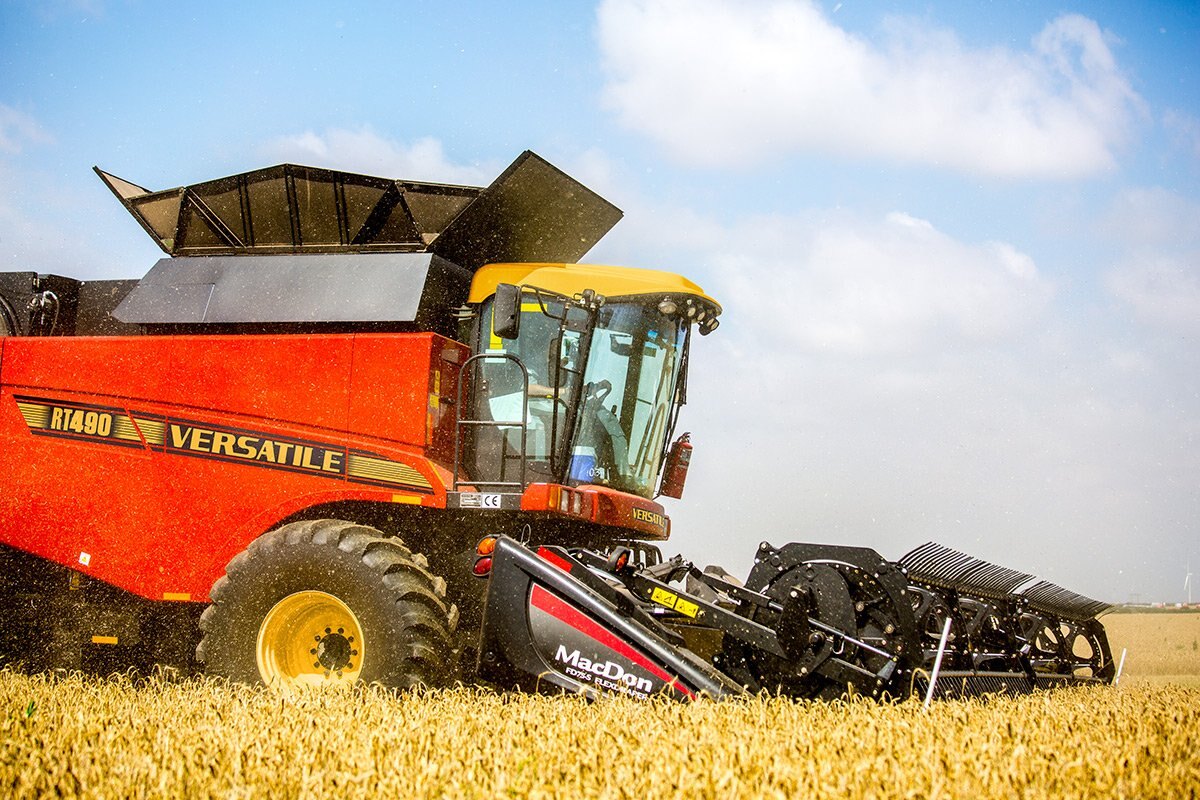

Combine RT490
The Class VIII RT490 combine was designed to be rugged, reliable and simple to maintain and service. At the core of the Versatile RT490 is the revolutionary Rotating Concave Rotary System. A 360° concave wraps around a large rotor and counter-rotates. The counter rotation of the concave in relation to the rotor creates an unsurpassed threshing and separating area.
|
|
|
|
Features
|
|
RCR360 System The moving concave eliminates the traditional “dead zone” found in typical rotary systems. The grain is threshed three times in each rotation, which increases throughput and provides a cleaner grain sample. The moving concave is self-cleaning.
The rotor system allows the RT490 to be more productive in high-yield fields and in difficult crop conditions than competitive units with a stationary concave.
|
 Rotating Concave Advantages In rotary combines with a stationary concave the concave area is not fully utilized which reduces the productivity parameters and causes concave clogging in its upper section due to the “dead zone.” The concave on the Versatile RT490 combine, rotating in the direction opposite to the rotor, ensures that the entire thresher/separator area is utilized. Such rotation prevents the twisting into a strand and provides for concave self-cleaning. |
|
 Three-Point Threshing System The concave has three threshing sections allowing the threshing gap to be set in one cross-section. As a result, the crop is threshed three times during one rotor revolution, in contrast with the one-time threshing in traditional rotor designs. This design provides for operation with increased threshing gaps, high-quality threshing and grain separation over the entire diameter.
|
|
Cab
 The Versatile RT490 cab was designed for long operating days. A large glass area and panoramic widows create an excellent view of the header during harvesting. A standard training seat, cooler, air-conditioner and sun visor further the operator comfort on long working days.
|
|
 Feeder House
Feeder Housing Versatile's RT490 has a chain type of feeder housing which allows for greater feeding capacity and even feeding to the threshing system.
Stone Protection The RT490 has a large stone trap to protect the combine’s critical components. The rock trap can be cleaned out easily with the handle on the left hand side of the feeder housing.
|
 Grain Cleaning
The cleaning system used in the Versatile RT490 combine is designed to accommodate the large rotor throughput capacity.?The cleaning process is two-stage. The additional stage is provided in the form of an advance sieve. The shaker pan and lower sieve move in one direction, and the massive component of the upper sieve moves in the opposite direction.
|
 Engine
A Cummins 11.9L powers the RT490. The 490 hp unit provides ample power to harvest in any crop conditions. The QSX 11.9L engine incorporates the Cummins-patented Variable Geometry Turbocharger (VGT) to improve fuel economy and help control emissions.
|
|
Grain Handling
Grain Tank
The Versatile RT490 has a 340 bu. tank capable of being unloaded in less than two minutes. Two horizontal augers set at different heights feed grain into the grain tank to prevent start overload. A large grain tank observation window and a cab platform window give the operator two view points into the grain tank. The grain tank roof can be controlled from the cab to switch from working mode to transport or storage.
|
|
Residue Management
Chopping and Spreading
The RT490 is equipped with an integrated straw chopper and spreader that performs two functions: shredding straw arriving from the rotor and chaff from the cleaning system. Straw and chaff are uniformly cut and spread or placed in a swath.
|
 Serviceability
Versatile is known for building equipment that is easy to service and maintain and the RT490 lives up to that reputation. The simplicity and accessibility of the combine allows operators to quickly perform daily maintenance tasks and adjustments. Large access areas to the RT490’s critical components and daily maintenance areas help reduce downtime. Belts and other wear components are changed in less time than it takes to service competitive units.
|
