INFORMATION DETAILS
ID: 13528787
|
Year: 2016
|
Make: Salford
|
Model: 9800 DRH
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
SELLER DESCRIPTION
|
Go Deep and Stay There

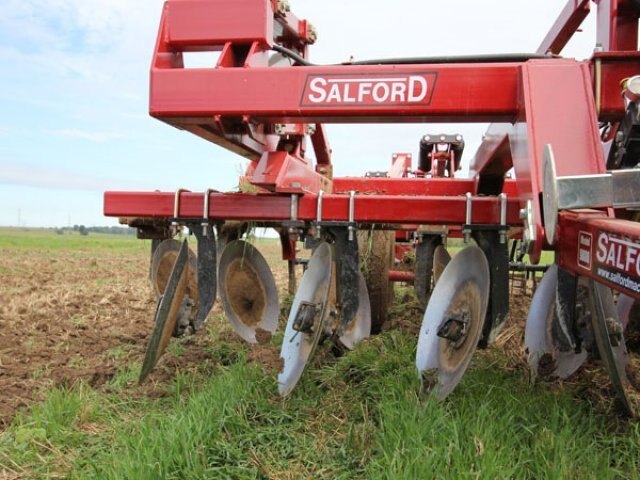

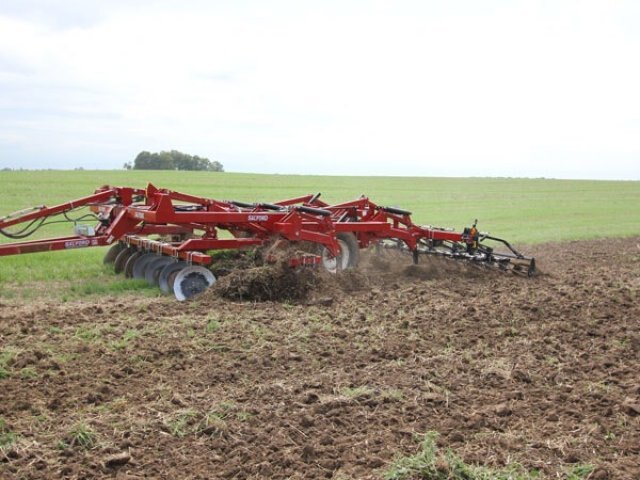

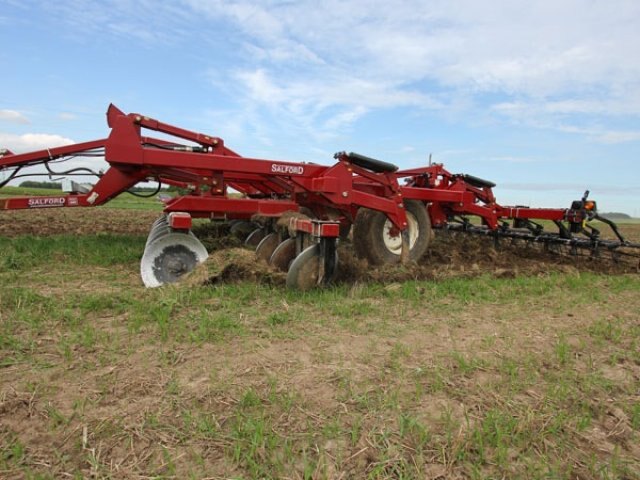

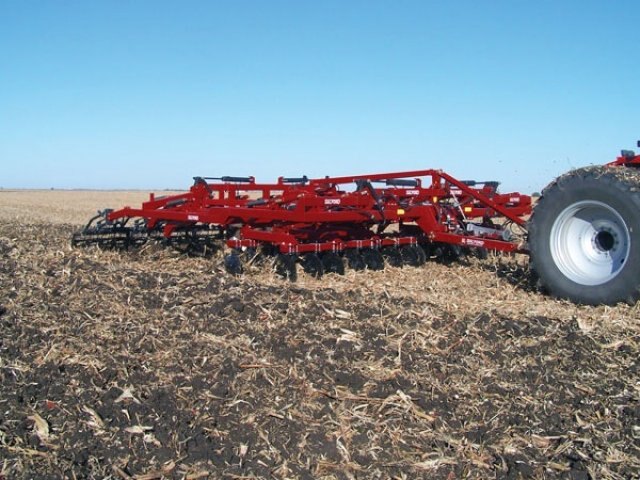

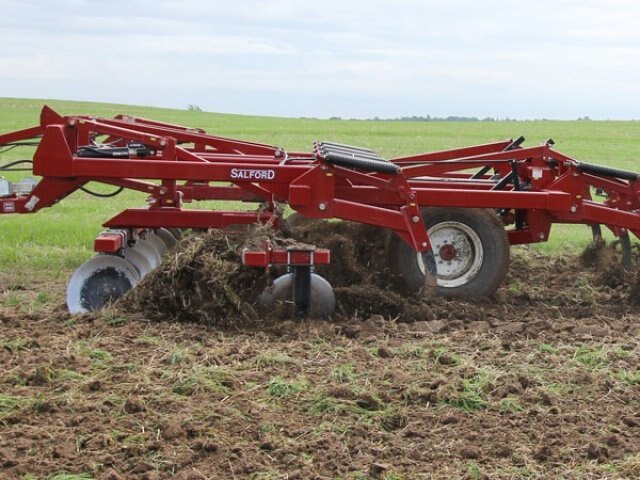

The Salford 9800 Disc Ripper Harrow is designed to go deep and stay deep. Where other disc rippers and tillage tools often ride up and over tough obstacles in the soil profile, the 9800's weight and 6"x8"main frame keep this machine at depth to break up compacted soil. The individual blade mounts hold each blade on a compound angle improving ground penetration and holding the machines front end in the ground.With the ability to switch between chisel shanks and parabolic shanks on this one frame, the 9800 offers the soil density reduction options you are looking for regardless of how much land you cover.The Salford 9800 has been designed with durability, power and performance in mind.
|
|
Features:
|
Standard Features
-
Auto reset shanks / adjustable trip (Average 2200 lbs)
-
44” Under frame clearance
-
Single point depth control
-
Safety lights , safety chain
-
Working depth of 4” to 16”
Disc Gang Specs
-

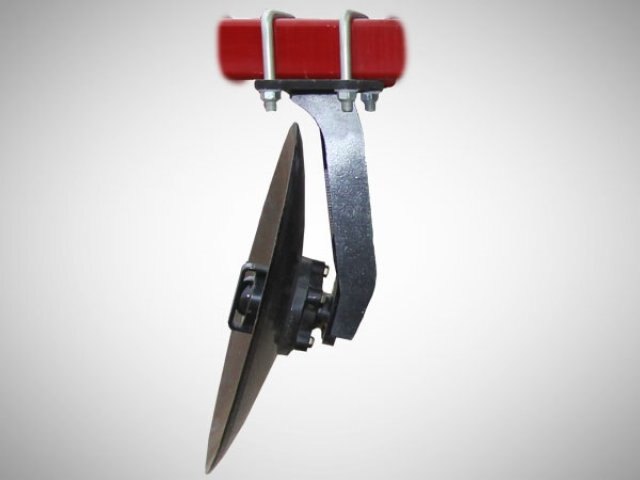

Two rows of individually mounted blades
-
24” x 1/4” (6.5mm) low concavity 5 bolt blade standard
-
Optional notched 24’ x 1/4’ (6.5mm) low concavity blade
-
20” shank spacing = 2 rows of 22” spaced blades
-
(22” shank spacing = 2 rows of 20” spaced blades on 13' machines)
Options
-
Auto reset 3rd spring assist increases trip adjustment to 4000 lbs
-
Notched blades
-
22” x 13-wave blades
-
Additional mount with blade (for closer spacing)
-
Open center hydraulic kit
-
Manual wing gauge wheel (recommended on 22’)
-
Shank reset lock-out kit
|
